Our Equipment and Facilities
Electroforming equipment

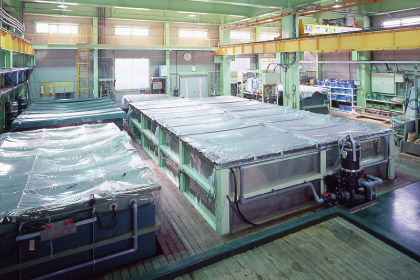

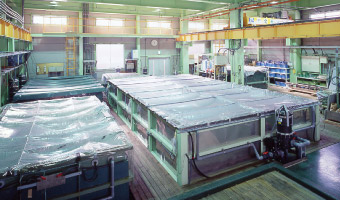

Large electroforming apparatus with a capacity of 60,000 liters

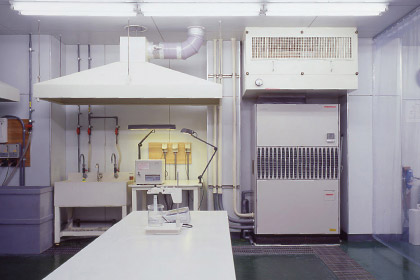

An Electroforming bath is installed in Class 10000 clean room, enabling to manufacture high-quality products.
Main processing machine

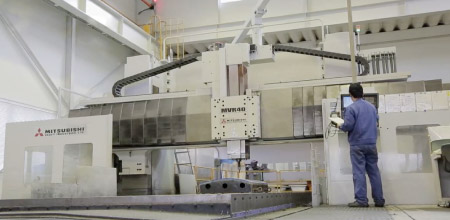

Large-scale machining center Mitsubishi MVR-40
Table size: L8000 × W3750 (mm)
3D data enables high-precision 3D fabrication. We utilize it efficiently according to the type and condition of fabrications.
List of major equipment and facilities
| Name | Specifications |
|---|---|
| Large-scale machining center Mitsubishi MVR-40 | Table size: L8000 × W3750 |
| Large-scale machining center Mitsubishi MVR-30 | Table size: L4000 × W2000 |
| Electrical discharge machine: Sodick AG80L |
Makes it possible to provide low-cost production and improve operation capability and efficiency. Ceramic table dimensions: 900 × 750 (width × depth) Maximum mass of the processing item: 2000 kg |
| High-precision high-speed machining center: Makino V99 | Work surface of the table: 1800 × 1000 mm Movable distance: 1500 × 1000 × 800 mm (X, Y, Z) Maximum loading capability: 4000 kg |
| High-speed machining center: Makino V77 | Work surface of the table: 1400 × 700 mm Movable distance: 1200 × 700 × 650 mm (X, Y, Z) Maximum loading capability: 2500 kg |
| High-speed machining center: YBM-850V | Work surface of the table: 1400 × 700 mm Movable distance: 1200 × 700 × 650 mm (X, Y, Z) Maximum loading capability: 2500 kg |
| Horizontal machining center: YBM-660N | Working size of table: 1500 × 600 mm Movable distance: 1280 × 650 × 640 mm (X, Y, Z) Maximum loading capability: 1500 kg |
Prompt service for mold repairs/building up/modification. Aiming to provide high-quality and low-cost production of new molds.
| Name | Specifications |
|---|---|
| For production trial 350-ton injection molding machine: Mitsubishi 350MGIII-40C |
We are constantly working on technological innovation to become a suggestion-based mold manufacturer. |
| Die press | Model fitting is carried out using a 15, 50, or 100-ton die press. |
| Laser welder | Manufacturer: AAA/Model: Alpha Laser 150 |
Measuring instruments
| Name | Specifications |
|---|---|
| 3-dimensional measurement machine | Manufacturer: Tokyo Seimitsu/Type: XYZAX Manufacturer: Mitsutoyo/Type: FJ-604 |
| SEM (Scanning Electron Microscope) | |
| Ultra-deep focus shape measurement 3D laser microscope | |
| High-precision coordinate measuring instrument: Laser tracker |
